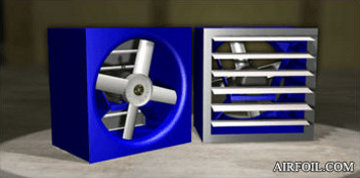

Direct Drive Wall Fans With Gravity-Actuated Back Draft Dampers

Airfoil Impellers Wall Fans are designed and built around our standard panel fan, providing near maintenance-free operation. Available in both direct-drive and belt-drive configurations, our wall fans come standard with three phase high efficiency motors. Rain hoods are available for supply fans, and optional aluminum back draft dampers -- both gravity- and motor-actuated -- will provide rain-tight protection for exhaust fans.

Standard housings are fabricated using steel, but are also available in aluminum and stainless steel construction. Additionally, steel housings come standard with an enamel finish, with optional epoxy and hot dip galvanized finishes available.

Specifications
Applications:
·  Emergency Exhaust
·  Equipment Cooling
·  Exhaust
·  General Ventilation
Housing Material Options:
·  Steel (Enamel Finish)
·  Steel (Epoxy Finish)
·  Steel (Hot-Dip Galvanized)
·  Aluminum
·  Stainless Steel
Drive Mechanism:
·  Belt Drive
·  Direct Drive
Features:
·  Continuous Welded Housing
·  NEMA T-Frame Motor Mount
Options:
·  Aluminum Back Draft Dampers - Gravity Actuated
·  Aluminum Back Draft Dampers - Motor Actuated
·  Rain Hood
·  Low Temperature Grease

Cut Sheet
Wall Fan Cut Sheet To view or print model specifications,
download the product cut sheet.
